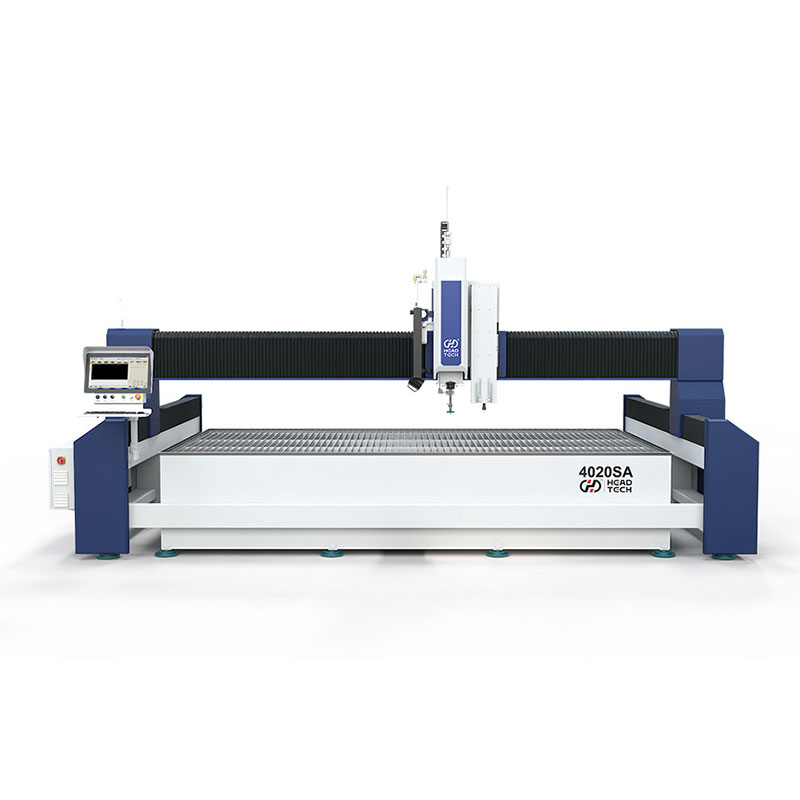

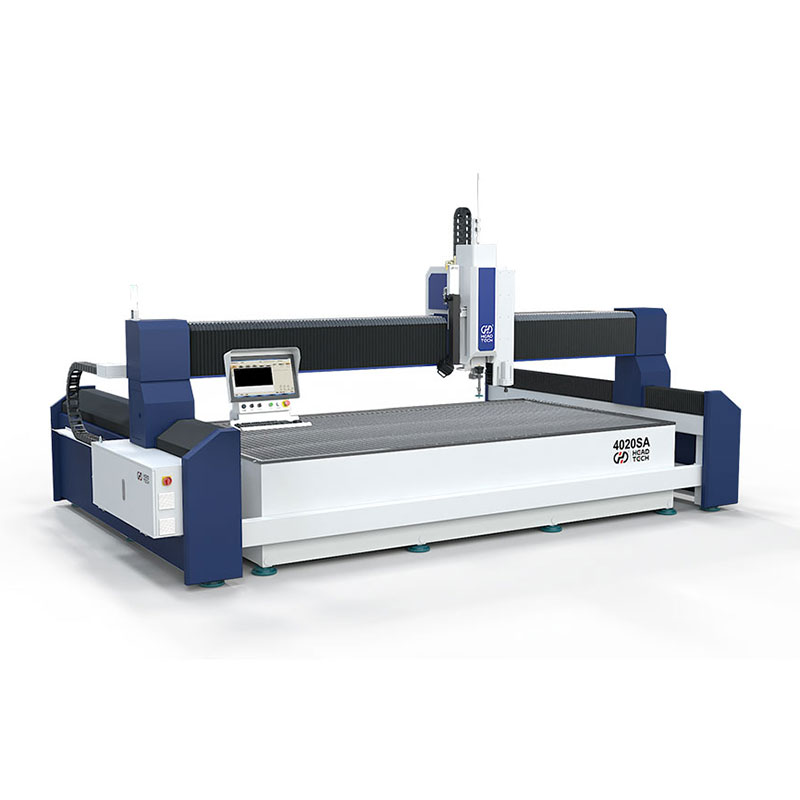

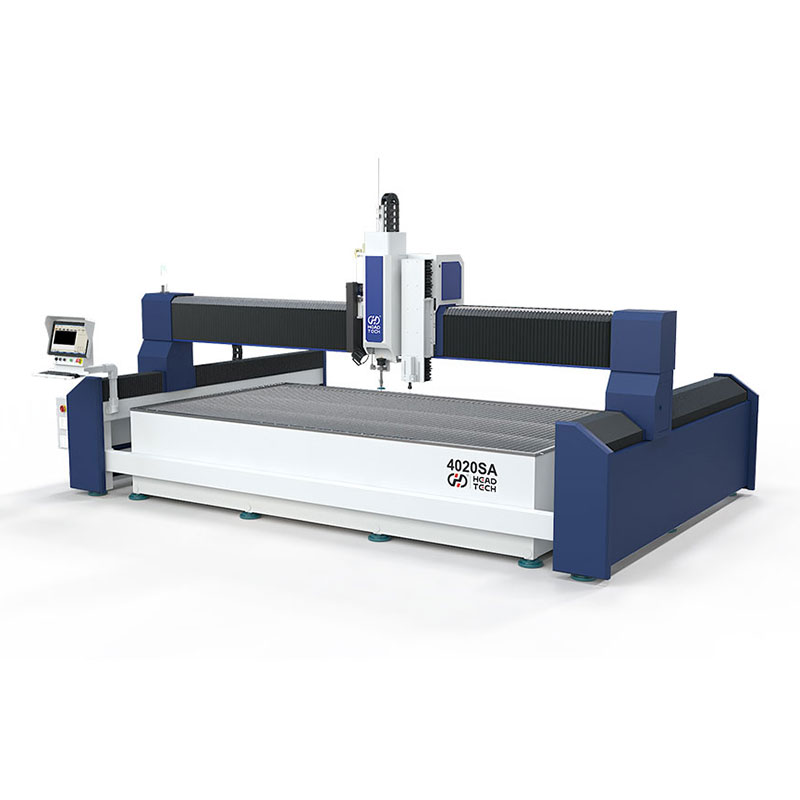

HEAD CP-E Series Gantry Split-Type Waterjet Cutting Machine with Drill Bit
Split-type gantry waterjet cutting machine with integrated drilling for heavy, thick composite materials. Available in HEAD2030SA, HEAD3020SA and HEAD4020SA with intelligent CNC control and optional five-axis processing.
Products Description
CP-E SERIES · WATERJET + DRILLING
Cut and Drill Heavy Composites
in One Integrated Workflow.
The HEAD CP-E Series combines cold waterjet cutting with efficient drilling for heavy, thick composite materials. Its split gantry structure delivers high load capacity, rigidity and precision across large workpieces.
HEAD2030SAHEAD3020SAHEAD4020SA
Performance at a glance
Dual-Process Productivity for Large Parts
| Cut + DrillIntegrated Processes | 9 m/minIdle Travel Speed | ±0.1 mmCutting Accuracy | 380 MPaWater Reaction Design |
Signature Engineering
Split Gantry Structure
The separated gantry and workpiece support structure isolates precision motion from heavy material loads. This improves rigidity and maintains dependable cutting and drilling accuracy on oversized parts.
Cold waterjet processing avoids a heat-affected zone, while the integrated drilling unit creates starter holes and processes layered composites more efficiently.
Why CP-E
Two Processes, One Production Platform
01 · Integrated Cutting and Drilling
Automatic process switching reduces secondary handling and improves throughput for composite components.
02 · Heavy-Duty Split Structure
High-rigidity construction supports large, thick workpieces while protecting motion accuracy.
03 · Intelligent CNC Control
User-friendly software supports common formats, automatic toolpaths, parameter databases and real-time monitoring.
04 · Flexible Head Configurations
Three-axis and five-axis waterjet-plus-drill configurations support varied production requirements.
Model Comparison
Technical Specifications
| Specification | HEAD2030SA | HEAD3020SA | HEAD4020SA |
|---|---|---|---|
| X-Axis Stroke | 2000 mm | 3000 mm | 4000 mm |
| Y-Axis Stroke | 3000 mm | 2000 mm | 2000 mm |
| Z-Axis Stroke | 150 mm | 150 mm | 150 mm |
| Max. X/Y Idle Speed | 9000 mm/min | 9000 mm/min | 9000 mm/min |
| Cutting Accuracy | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Positioning Accuracy | ±0.05 mm/500 mm | ±0.05 mm/500 mm | ±0.05 mm/500 mm |
| Repositioning Precision | ±0.03 mm/500 mm | ±0.03 mm/500 mm | ±0.03 mm/500 mm |
Engineering Details
Built for Composite Processing
Five-Axis Waterjet + Drill
High-precision 3D cutting and drilling support complex composite components and dynamic compensation.
High-Strength Platform Frame
Stress-relieved welded steel provides a durable foundation for long-term heavy-load operation.
Three-Color Status Indicator
Green, yellow and red signals communicate running, standby and critical fault conditions at a glance.
Centralized Lubrication
Managed lubrication protects rails, sliders, screws and racks while reducing routine maintenance.
Applications
Demanding Materials and Industries
Recommended for automotive, aerospace, defense, composite manufacturing, metalworking and glass processing where cold cutting and efficient hole preparation are both required.
FAQ
Common Questions
Why combine waterjet cutting and drilling?
Drilling creates efficient starter holes and supports layered composites, while waterjet cutting completes profiles without heat damage.
Which models are available?
HEAD2030SA, HEAD3020SA and HEAD4020SA provide working strokes for different part orientations and sizes.
Can it process thick composites?
Yes. The heavy-duty split structure is designed for thick, large-format composite workpieces.
Are three-axis and five-axis options available?
Yes. The platform can be configured around the geometry and accuracy required by your parts.
Talk to a Waterjet Specialist
Configure a CP-E for Your Composite Parts
Share your material stack, thickness, hole requirements and working size. Our team will recommend a suitable cutting and drilling configuration.
