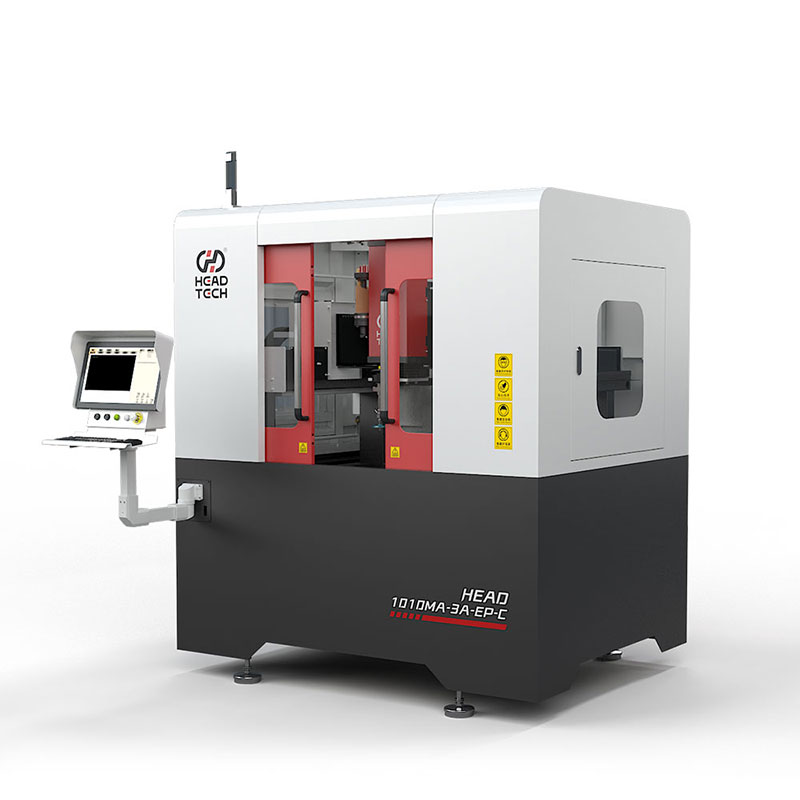

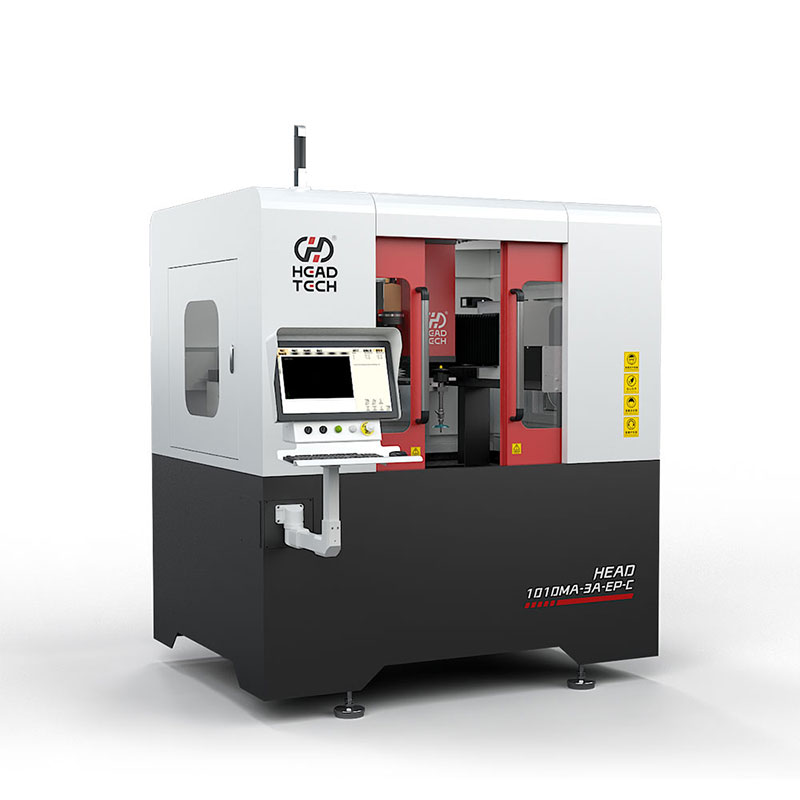

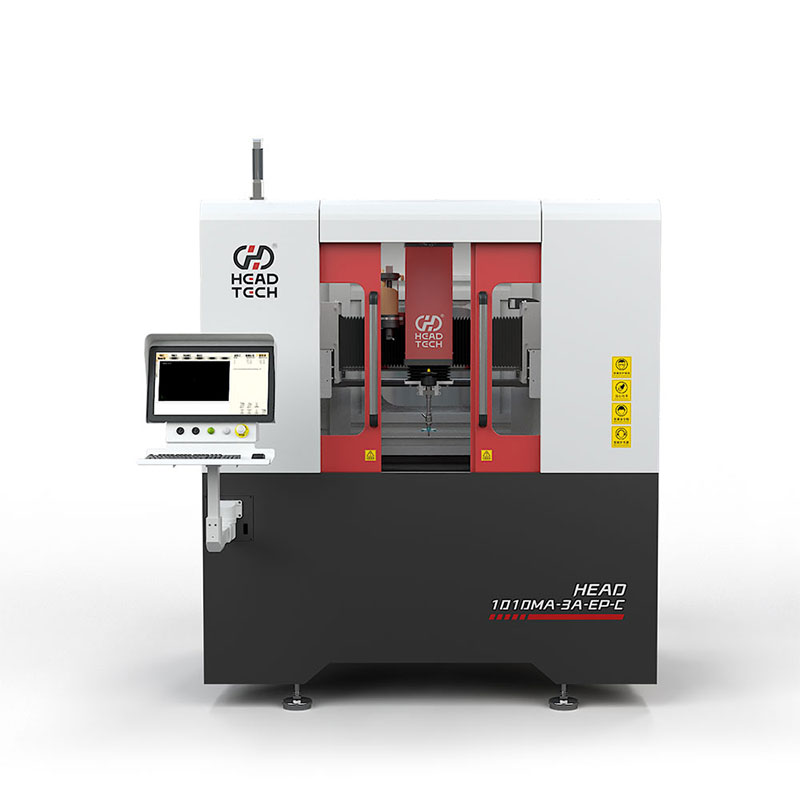

HEAD EP Series Fully Protective Waterjet Cutting Machine
Fully enclosed waterjet cutting machine designed to contain mist, noise and debris while protecting operators. Available in HEAD0404MA, HEAD0606MA and HEAD1010MA for laboratories and controlled production environments.
Products Description
EP SERIES · FULLY ENCLOSED WATERJET
Precision Cutting.
Contained and Protected.
The HEAD EP Series combines precision waterjet cutting with a fully enclosed safety structure. It contains mist, noise and debris while protecting operators and delivering smooth, burr-free edges across metals, glass, stone and composites.
HEAD0404MAHEAD0606MAHEAD1010MA
Performance at a glance
A Cleaner, Quieter Cutting Environment
| Fully EnclosedOperator Protection | Up to 40%Noise Reduction | ±0.1 mmCutting Precision | 6 m/minTraverse Speed |
Signature Engineering
Comprehensive Safety Protection
The enclosure isolates the cutting area, and interlocked doors remain secured during operation. If a door opens, the intelligent control system stops the machine to protect operators.
The enclosed structure also contains water mist, abrasive debris and operational noise, making the EP Series well suited to laboratories, universities and high-standard production environments.
Why EP Series
Safety, Cleanliness and Precision
01 · Fully Enclosed Operation
Interlocked access and all-around guarding reduce operator exposure to cutting hazards.
02 · Noise and Mist Containment
The protective enclosure can reduce noise by up to 40% while containing mist and debris.
03 · Customized Fixtures
Tailored tooling holds specialized samples securely for accurate, repeatable cutting.
04 · Intelligent 3D Control
Customized software and a rigid lightweight head support precise three-dimensional processing.
Model Comparison
Technical Specifications
| Specification | HEAD0404MA | HEAD0606MA | HEAD1010MA |
|---|---|---|---|
| X-Axis Stroke | 400 mm | 600 mm | 1000 mm |
| Y-Axis Stroke | 400 mm | 600 mm | 1000 mm |
| Z-Axis Stroke | 150 mm | 150 mm | 150 mm |
| Traverse Speed | 6 m/min | 6 m/min | 6 m/min |
| Cutting Precision | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Positioning Accuracy | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Repositioning Precision | ±0.03 mm | ±0.03 mm | ±0.03 mm |
Engineering Details
Built for Controlled Environments
Protected Motion Components
Protective bellows shield precision motion components from abrasive debris and moisture.
Visible Machine Status
A prominent signal light communicates operating, standby and fault conditions.
Precision Motion Module
Integrated guidance and transmission components support accurate, repeatable movement.
Integrated Control Cabinet
A compact embedded cabinet keeps control hardware organized and protected.
Applications
Laboratories and High-Standard Production
Ideal for laboratories, universities, sample preparation, R&D and controlled production environments processing metals, glass, stone and composite materials.
FAQ
Common Questions
What happens if a door opens during cutting?
The intelligent interlock system automatically stops the machine to protect the operator.
How much can the enclosure reduce noise?
The full enclosure can reduce operational noise by up to 40%, depending on the process and environment.
Are custom fixtures available?
Yes. Fixtures can be tailored to secure specialized materials and samples for precise cutting.
Which working sizes are offered?
HEAD0404MA, HEAD0606MA and HEAD1010MA provide 400 × 400 mm, 600 × 600 mm and 1000 × 1000 mm working strokes.
Talk to a Waterjet Specialist
Configure a Safer Waterjet Workspace
Share your material, sample size, safety requirements and application environment for a suitable EP Series configuration.
