HEAD MP-E Series Gantry Waterjet Cutting Machine
Heavy-duty five-axis gantry waterjet cutting machine with a split-bed structure, intelligent control and up to 2,500 kg/m² load capacity. Available in HEAD3020SA and HEAD4020SA models for precise large-format cutting.
Products Description
MP-E SERIES · FIVE-AXIS WATERJET SYSTEM
Precision Without Compromise.
Built for Heavy Industry.
HEAD MP-E Series Gantry Split Waterjet Cutting Machine is specially designed for large-size, thick metal cutting requirements. With its unique design and superior performance, it has become an efficient tool in the industrial cutting field.
The equipment adopts a robust split gantry structure, providing exceptional load-bearing capacity. It can easily handle heavy, oversized thick metal plates and ensures stable and reliable cutting performance even under heavy loads.

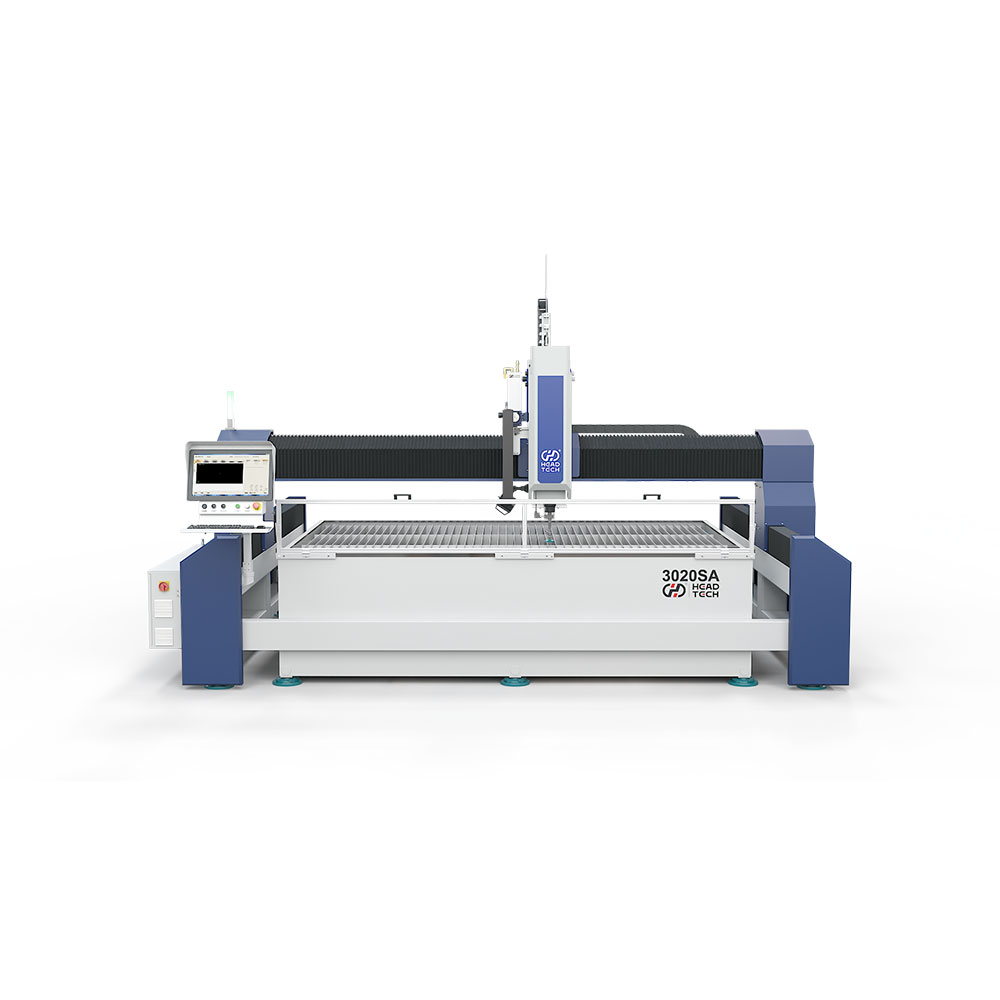

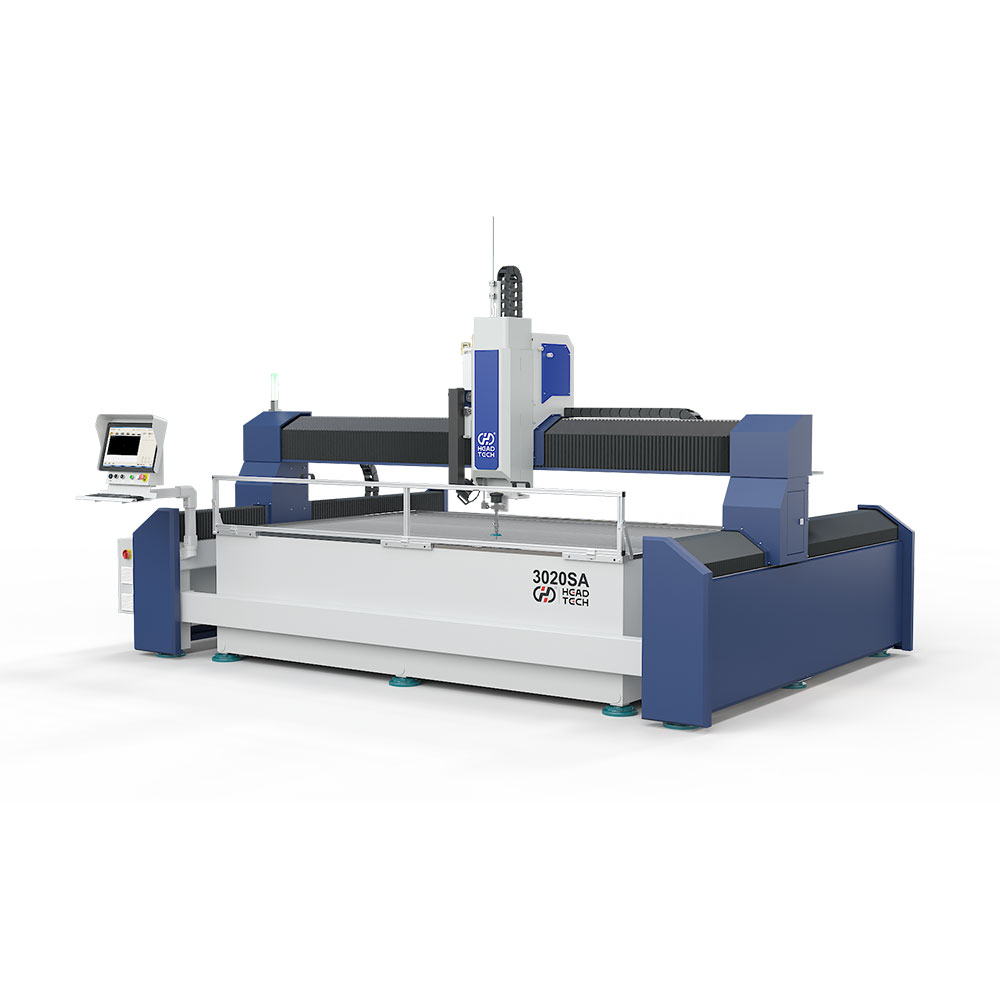

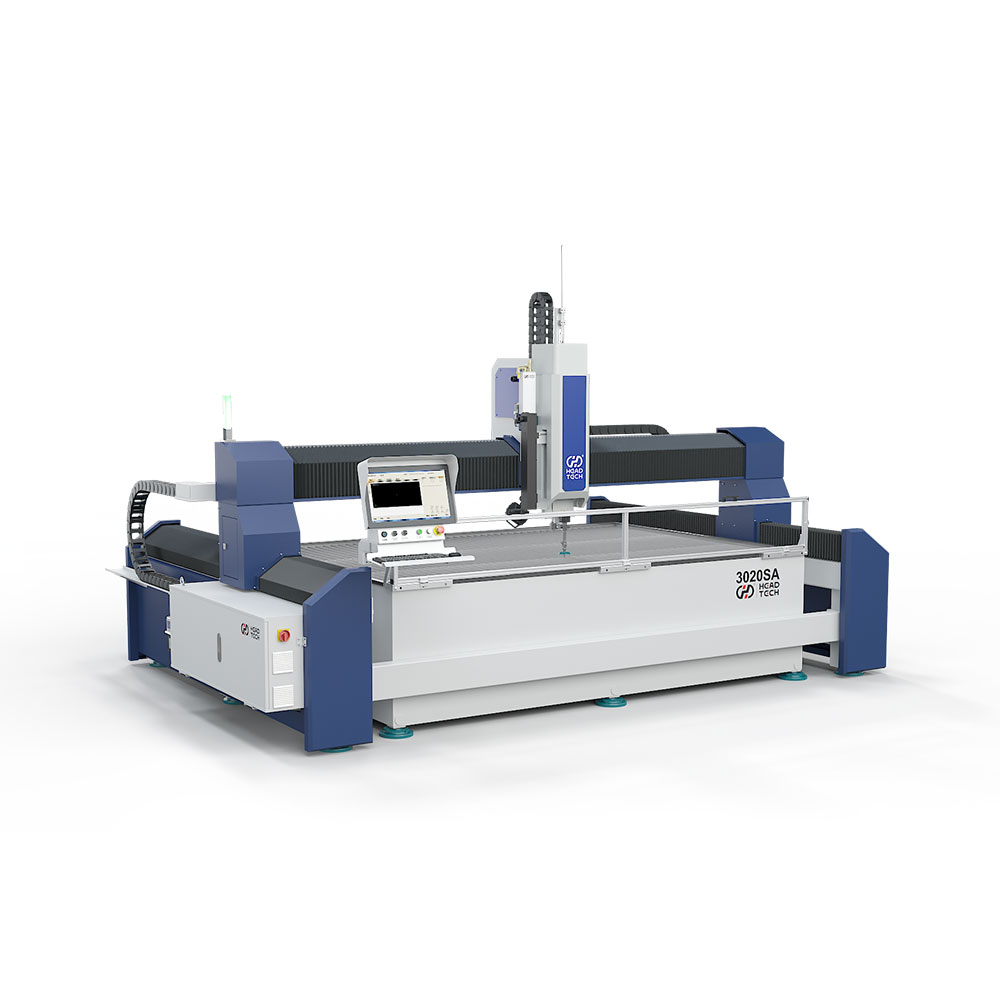

HEAD3020SA HEAD4020SA
Performance at a glance
One Platform. Two Working Sizes.
| 5-AxisCutting System | 2,500kg/m² Load | ±0.03mm / 500 mm | 6 m/minTraverse Speed |
Signature Engineering
Split Bed Structure
The MP-E Series separates the precision motion frame from the cutting tank and workpiece load. The outer structure carries the enclosure and gantry dynamics, while the independent inner bed supports water, slats and material.
This structural separation reduces deformation transfer, protects positioning accuracy and delivers more consistent cutting performance under demanding heavy-plate conditions.
Why MP-E
Designed for Reliable Production
01 · Heavy-Duty Stability
Independent structures isolate heavy material and tank loads from the precision gantry frame.
02 · True Five-Axis Capability
A rigid, lightweight cutting head supports accurate bevel cutting and complex three-dimensional profiles.
03 · Built for Long Service
Stress-relieved welded steel, protected transmission components and centralized lubrication support lasting accuracy.
04 · Intelligent Operation
Customized Ncstudio control simplifies setup, daily operation and multi-material processing.
Model Comparison
Technical Specifications
| Specification | HEAD3020SA | HEAD4020SA |
|---|---|---|
| X-Axis Stroke | 3000 mm | 4000 mm |
| Y-Axis Stroke | 2000 mm | 2000 mm |
| Z-Axis Stroke | 350 mm | 350 mm |
| Traverse Speed | 6 m/min | 6 m/min |
| Control Precision | ±0.03 mm/500 mm | ±0.03 mm/500 mm |
| Cutting Precision | +0.1 mm | +0.1 mm |
| Repositioning Precision | +0.05 mm | +0.05 mm |
Built From the Inside Out
Engineering Details
High-Strength Steel Platform
One-piece welded square steel and stress-relieving annealing create a rigid, durable foundation for precise motion.
Five-Axis Cutting Head
A compact, highly rigid assembly enables accurate bevel compensation and versatile 3D cutting.
Laser-Assisted Alignment
Visual positioning support accelerates setup and helps operators maintain precise control.
Centralized Lubrication
Managed lubrication protects guide rails, sliders, ball screws and racks to reduce wear and maintenance.
Applications
Cut More Than Metal
Ideal for automotive, aerospace, defense, general fabrication, composites, stone and glass processing.
Materials: metal, fiberglass, glass, plastic, stone, rubber, composites and other engineered materials—without a heat-affected zone.
Machine Details
Designed for the Factory Floor
FAQ
Common Questions
Which working sizes are available?
HEAD3020SA provides a 3000 × 2000 mm working stroke; HEAD4020SA provides 4000 × 2000 mm.
Can it handle heavy metal plate?
Yes. The reinforced independent tank bed supports loads up to 2,500 kg/m².
What can the five-axis head produce?
It supports accurate bevel cutting, taper compensation and complex three-dimensional profiles.
Can the system be tailored?
Yes. Share your material, thickness, part size and production targets for a recommended configuration.
