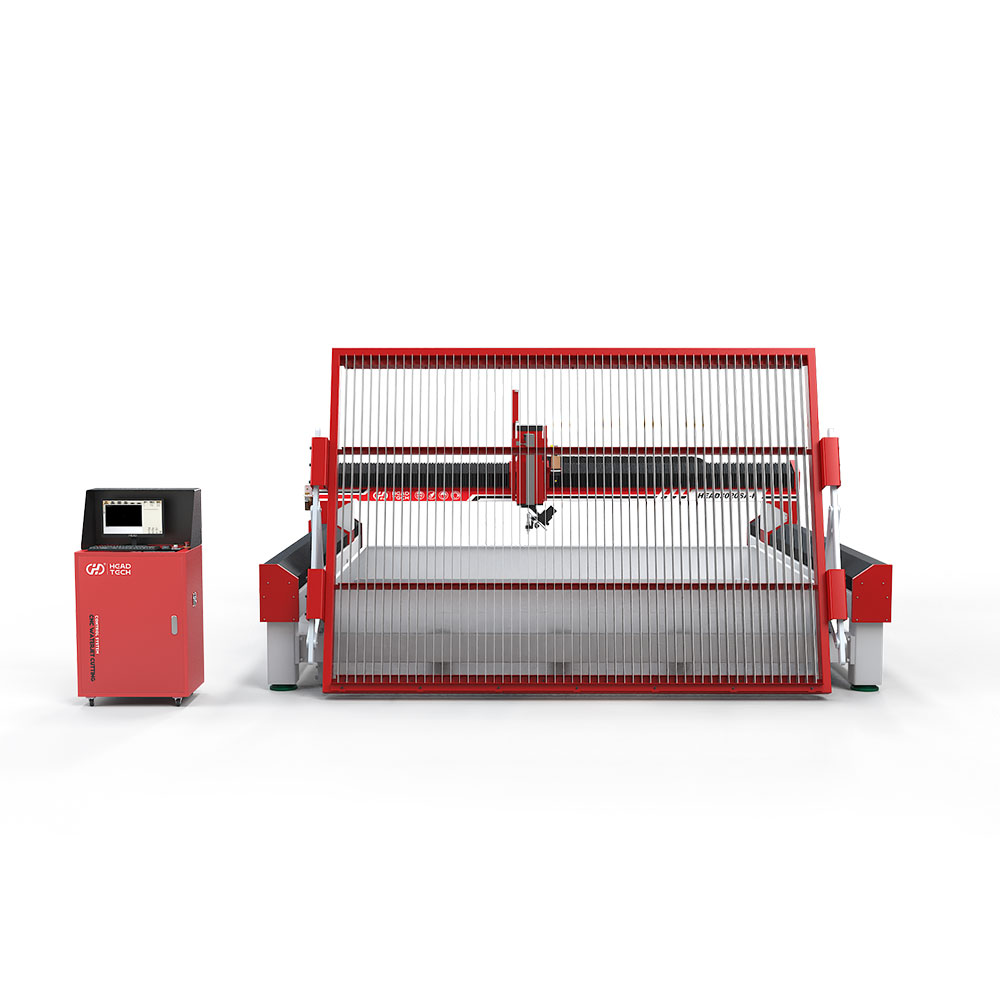

HEAD SP-C Series Tilting Table Waterjet Cutting Machine
Split-structure gantry waterjet cutting machine with a hydraulic tilting platform for easier loading of large stone and glass panels. Available in HEAD3020SA and HEAD4020SA with intelligent five-axis control.
Products Description
SP-C SERIES · TILTING TABLE WATERJET
Simpler Slab Handling.
Stable Five-Axis Cutting.
The HEAD SP-C Series combines a classic split-structure gantry waterjet with an upgraded hydraulic tilting platform. It helps operators load large stone and glass panels safely while protecting long-term cutting accuracy.
HEAD3020SAHEAD4020SA
Performance at a glance
Production Efficiency for Large Panels
| 20 m/minTraverse Speed | ±0.1 mmCutting Precision | +40%Tilting Load Capacity | 3DCutting Control |
Signature Engineering

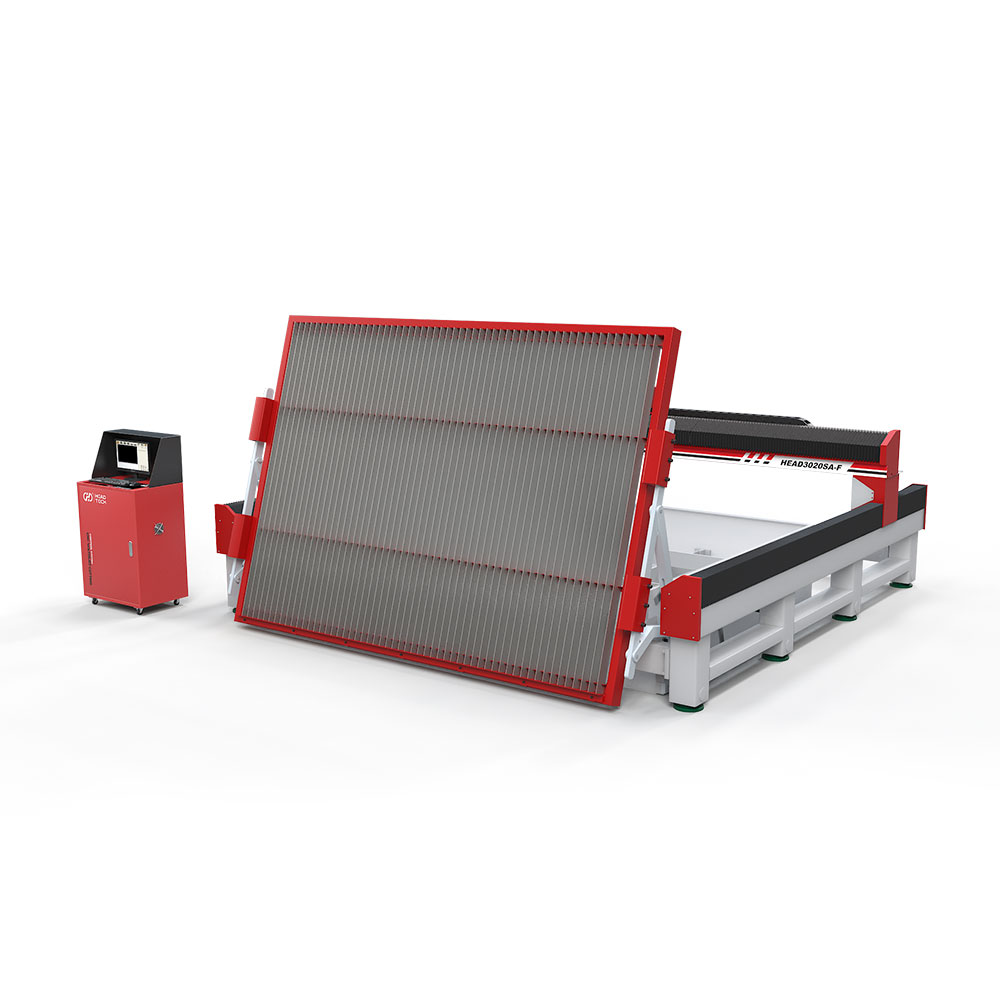

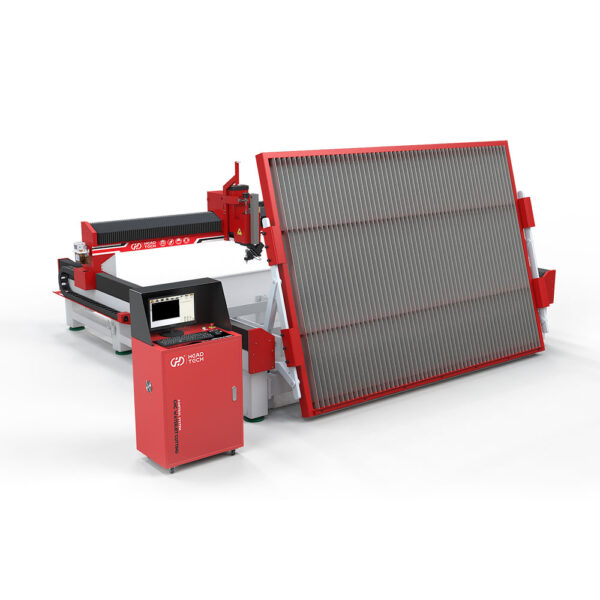

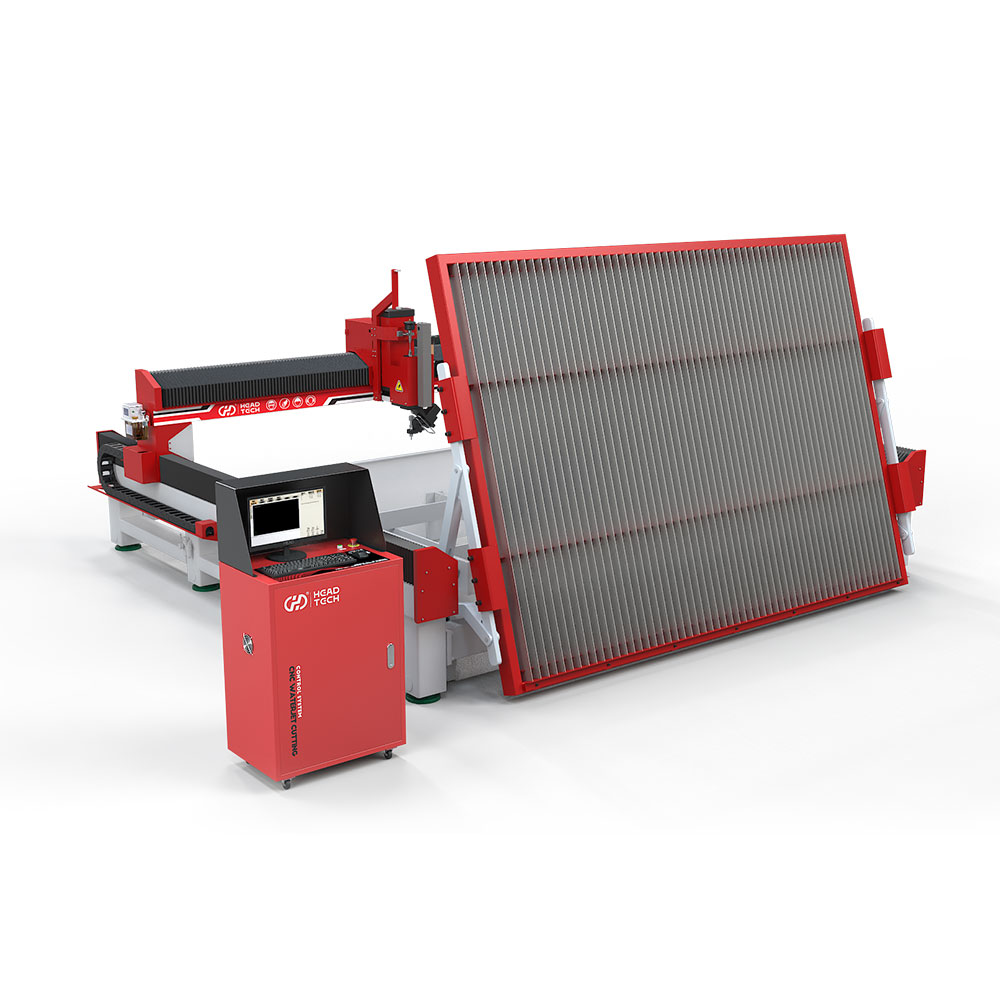

Upgraded Hydraulic Tilting Platform
Hydraulic damping and precision guide rails provide smooth, stable tilting for large-format panels. The floor-level loading position reduces manual handling and helps protect fragile stone and glass.
A separated water tank and machine bed prevent tank stress and heavy workpiece loads from affecting precision motion.
Why SP-C
A Practical Platform for Stone and Glass
01 · Safer Loading and Unloading
The tilting platform reduces lifting effort and helps limit breakage of heavy, fragile slabs.
02 · Split Structure Accuracy
Separating the tank and machine bed keeps load changes away from the precision structure.
03 · High-Speed Traverse
A T6-treated aluminum crossbeam supports responsive 20 m/min movement.
04 · Intelligent 3D Processing
Customized software and a rigid cutting head support accurate bevel and three-dimensional cutting.
Model Comparison
Technical Specifications
| Specification | HEAD3020SA | HEAD4020SA |
|---|---|---|
| X-Axis Stroke | 3000 mm | 4000 mm |
| Y-Axis Stroke | 2000 mm | 2000 mm |
| Z-Axis Stroke | 250 mm | 250 mm |
| Traverse Speed | 20 m/min | 20 m/min |
| Cutting Precision | ±0.1 mm | ±0.1 mm |
| Positioning Accuracy | ±0.05 mm | ±0.05 mm |
| Repositioning Precision | ±0.03 mm | ±0.03 mm |
Engineering Details
Designed Around Slab Handling
Hydraulic Damping System
Controlled hydraulic motion supports stable tilting and higher load capacity.
Reinforced Support Arms
Robust supports stabilize heavy panels throughout loading and positioning.
Protected Cable Management
An enclosed drag-chain arrangement protects moving services in production environments.
Wireless Control Option
Optional cable-free control gives operators flexible access around large workpieces.
Applications
Large-Format Stone and Glass
Recommended for granite, marble, sintered stone, glass and engineered panels used in construction, countertops and architectural fabrication.
FAQ
Common Questions
How does the tilting table improve safety?
It lowers the loading position and reduces manual lifting of large, fragile panels.
Which working sizes are available?
HEAD3020SA offers 3000 × 2000 mm; HEAD4020SA offers 4000 × 2000 mm.
Can it cut bevels and 3D profiles?
Yes. Intelligent five-axis control supports bevel compensation and three-dimensional cutting.
What materials are recommended?
The platform is especially suited to large stone and glass slabs, while waterjet technology also supports many other materials.
