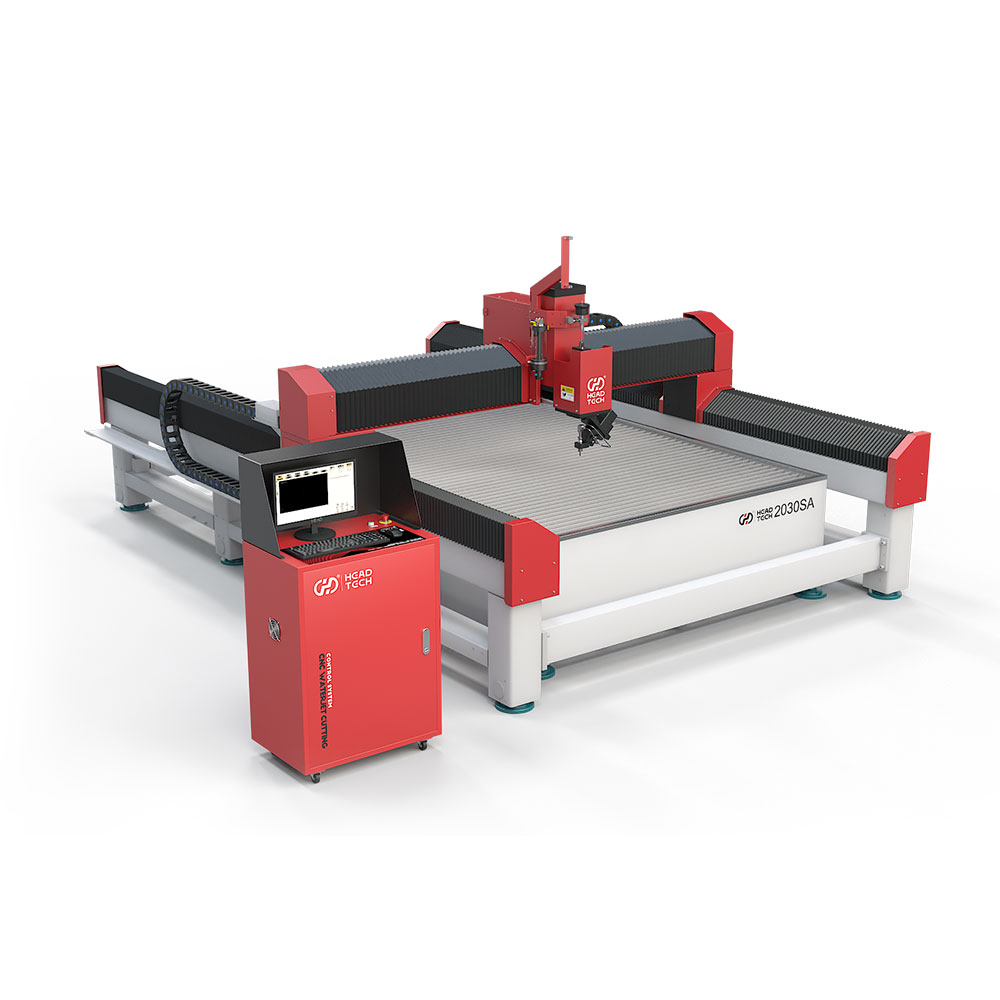

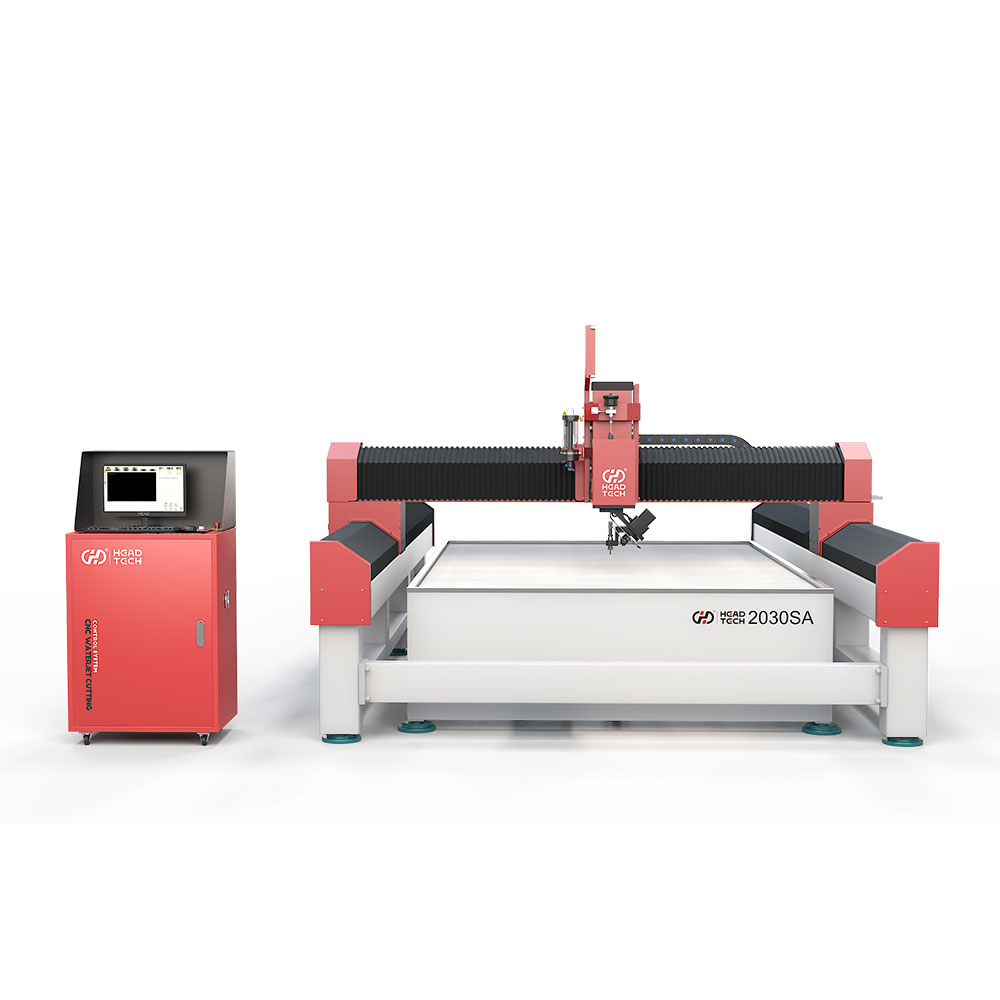

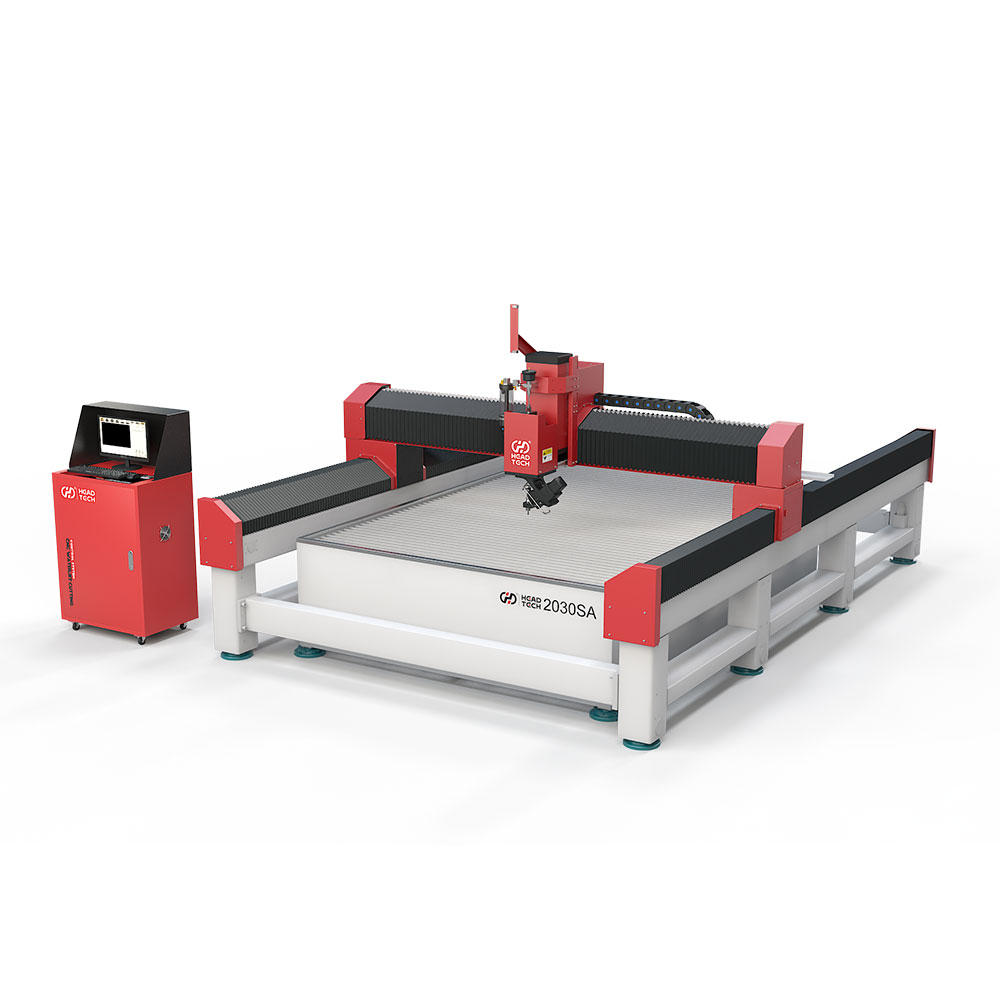

HEAD MP-C Series Gantry Type Waterjet Cutting Machine
Patented split-bed gantry waterjet cutting machine engineered for long-term accuracy across metals, glass, stone and composites. Available in HEAD2030SA, HEAD3020SA and HEAD4020SA with optional five-axis control.
Products Description
MP-C SERIES · GANTRY WATERJET SYSTEM
Stable Structure.
Precision Across Materials.
The HEAD MP-C Series uses a patented split gantry structure that separates the water tank and machine bed. Independent load paths reduce deformation effects and help maintain long-term waterjet cutting accuracy.
HEAD2030SAHEAD3020SAHEAD4020SA
Performance at a glance
Patented Stability for Daily Production
| 9 m/minTraverse Speed | ±0.1 mmCutting Precision | 3DFive-Axis Capability | CN221936053UPatented Structure |
Signature Engineering
Independent Inner and Outer Beds
The outer frame carries the enclosure and crossbeam dynamic load, while the inner tank bed supports the worktable, water and material. This separation prevents heavy workpieces and tank deformation from transferring into the precision motion structure.
The result is stable cutting performance and better long-term accuracy across demanding production cycles.
Why MP-C
Engineered for Reliable Cutting
01 · Patented Split Structure
Independent load paths reduce deformation transfer and protect motion accuracy.
02 · High-Strength Steel Foundation
Welded square steel, stress-relief annealing and protective surface treatment support long service life.
03 · Lightweight Aluminum Crossbeam
T6-treated aerospace-grade aluminum balances rigidity, speed and reduced moving mass.
04 · Intelligent Five-Axis Control
Customized Ncstudio control supports complex 3D cutting with a rigid, lightweight cutting head.
Model Comparison
Technical Specifications
| Specification | HEAD2030SA | HEAD3020SA | HEAD4020SA |
|---|---|---|---|
| X-Axis Stroke | 2000 mm | 3000 mm | 4000 mm |
| Y-Axis Stroke | 3000 mm | 2000 mm | 2000 mm |
| Z-Axis Stroke | 150 mm | 150 mm | 150 mm |
| Traverse Speed | 9 m/min | 9 m/min | 9 m/min |
| Cutting Precision | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Positioning Accuracy | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Repositioning Precision | ±0.03 mm | ±0.03 mm | ±0.03 mm |
Engineering Details
Precision From Structure to Motion
Ultra-Stable Machine Bed
Pyramid-inspired structural design improves vibration resistance and supports long-term cutting stability.
Fourth-Generation Aluminum Crossbeam
T6 heat treatment provides deformation resistance, strength and faster responsive motion.
Intelligent Five-Axis Cutting
Rigid lightweight construction supports three-dimensional cutting with minimal deflection under high-pressure water reaction force.
Precision Transmission
Protected ball-screw components and centralized lubrication support accurate, dependable travel.
Applications
Cut More Than Metal
Suitable for automotive, aerospace, defense, composites, metalworking and glass processing across metal, fiberglass, glass, plastic, stone, rubber and engineered materials.
FAQ
Common Questions
How does the split bed protect accuracy?
It separates heavy material and water-tank loads from the precision gantry structure, reducing deformation transfer.
Which working sizes are available?
HEAD2030SA, HEAD3020SA and HEAD4020SA cover common large-format production requirements.
Can it cut non-metal materials?
Yes. Waterjet cutting is suitable for glass, stone, rubber, plastics, fiberglass and composites as well as metal.
Is five-axis cutting available?
Yes. Five-axis control supports bevel compensation and complex three-dimensional profiles.
Talk to a Waterjet Specialist
Configure the Right MP-C System
Share your material, thickness, part size and production targets for a recommended model and cutting-head configuration.
